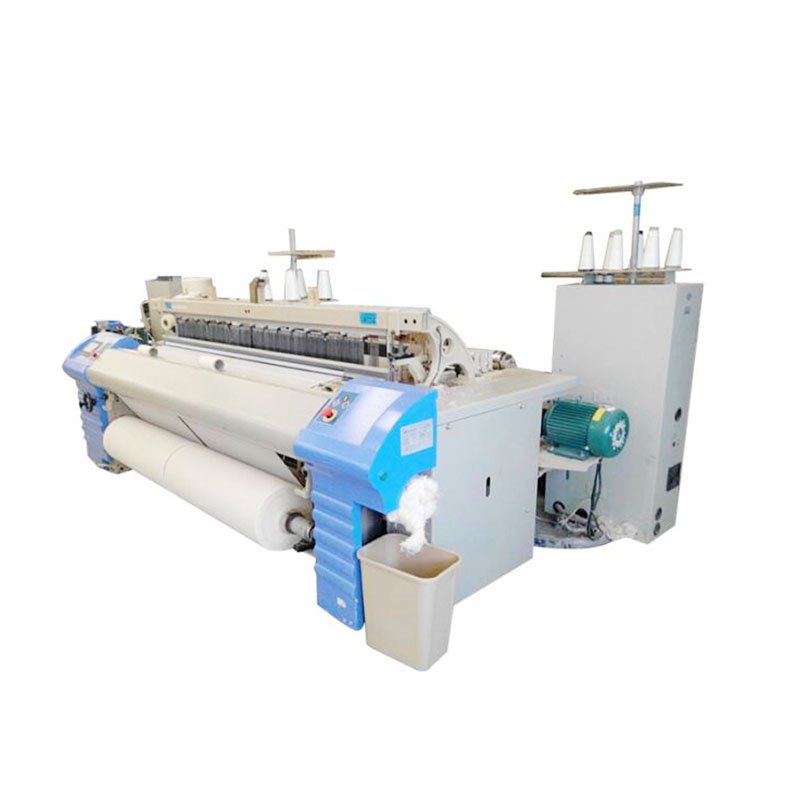

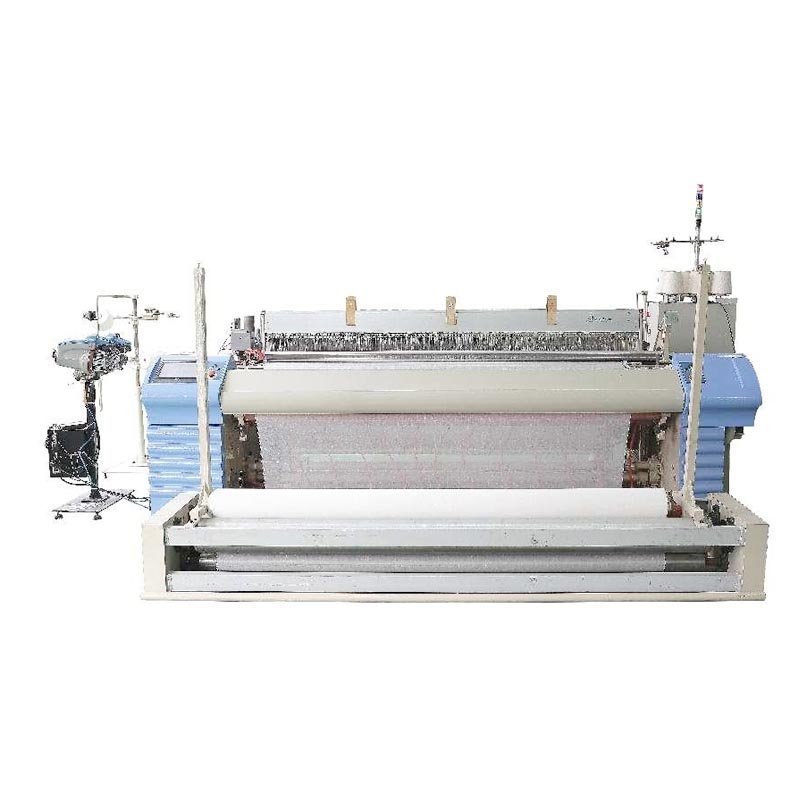

JLH425S High Speed medical gauze air jet loom

Reed width

Reed width(cm)

  190  210  230

 280  340  360

Useful reed width

Reduce 0-60cm (150-230cm)

Reduce 0-80cm (280cm above)

Fabric

Material & weave

Gauze fabric

Low density baby product

Power

Main power

  1.5kw(190cm-230cm)

  2.2kw 280cm

  2.8kw 340cm

Power consumption is  depend on reed width and shedding method.

Speed

Motor-belt pulley

RPM  600   650   700

 (below 230 cm ）

RPM  500   550   （280cm)

RPM  450   500   (340,360cm)

Weft insertion

Weft selection

Single color  Double color

Magnetic valve

SMC Japan

3 nozzle per valve

Feeder

Vibration model

Without WPS

WPS

1    2

(above 230cm，must be 2 feeder)

Nozzle

Energy-saving nozzle

Shedding

Shedding method

Crank plain shedding

Heald frame

1  2  4

Let off device

Mechanical type

Electronic type

Single beam

Flange diameter

Ø800  Ø914  Ø1000

Take up device

Take up

Electronic take up (ETU)

Mechanical take-up(MTU)

Max cloth roll diameter

Ø600mm(crank）

Ø1200mm(jumb batching motion）

Weft density

Take 40s cotton yarn for example

4-60picks/inch

Beating

Roller beating system

Four-bar beating-up motion (below 230cm)

Six-bar-beating-up motion(above 280cm)

Selvage

 Leno gear selvage

edge

 Tuck-in device  or  leno selvage

Cutter

Mechanical cutter

Lubrication

Manual oil supply

Automatic oil supply

Stop motion

Weft stop

Reflective weft feeler

One heads system

Two head system

Warp stop

Electric 2-row contact bar system

Control system

Inovance brand

Made-in-China

With BaiNa-borad(data setting, automatic control,monitoring,self-diagnosis function, WPS interface)

Automation

Pick ending

APF automatic pick finder

Accessory

Heald wire     s.s

3000pcs

Warp beam

1:1.5

Cloth roller

1:1.5

Reed  energy-saving type

1:1

Dropper  close or  open

3000pcs
